LMV342MM/NOPB, Op Amps Dual 5.5-V 1-MHz hig h output current, 10 Stück
Produktnummer:
N8335_
Produktinformationen "LMV342MM/NOPB, Op Amps Dual 5.5-V 1-MHz hig h output current, 10 Stück"

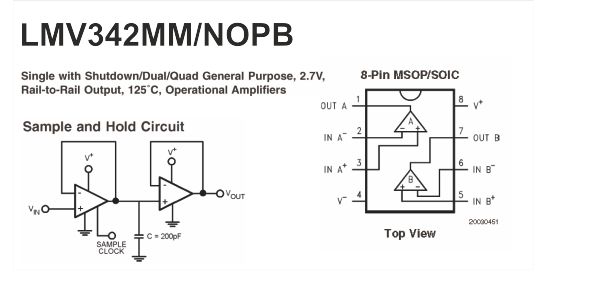

LMV34x-N Single Rail-to-Rail Output CMOS Operation Amplifier With Shutdown Features
• Typical 2.7 V Supply Values (Unless Otherwise Noted)
• Ensured 2.7 V and 5 V Specifications
• Input Referred Voltage Noise at 10 kHz: 29 nV/√Hz
• Supply Current (Per Amplifier): 100 µA
• Gain Bandwidth Product: 1 MHz
• Slew Rate: 1 V/µs •
Shutdown Current (LMV341-N): 45 pA
• Turnon Time From Shutdown (LMV341-N): 5 µs
• Input Bias Current: 20 fA
10 Stück
Downloads "LMV342MM/NOPB, Op Amps Dual 5.5-V 1-MHz hig h output current, 10 Stück"
